Annotation

1. Genomic Element Distribution Analysis

This workflow provides two complementary ways to perform genomic distribution analysis across multiple annotation layers. Users may either run a single wrapper function to execute all selected analyses in one step, or call each annotation function individually for inspection of intermediate results.

• Integrated workflow (recommended):
  The genomic_distribution() wrapper function executes one or more distribution analyses within a single, unified pipeline. According to the specified distributions argument, it internally invokes the four distribution functions in sequence, while automatically handling shared parameters and organizing all outputs in a common directory.

• Step-by-step workflow:
  The individual functions genic_distribution(), ccre_distribution(), chromhmm_distribution(), and repeat_distribution() can be run independently. This approach allows users to customize parameters for each analysis and to inspect intermediate results with greater flexibility.

Wrapper Function Overview

The genomic_distribution() function performs genomic distribution analyses across multiple annotation types.

Parameters

Parameter	Type	Required	Description	Example
query	GRanges or GRangesList	Yes	Genomic regions to be annotated. Each element in a GRangesList is treated as an independent sample or cluster.	query = my_peaks
out_dir	character	Yes	Output directory for all result tables and plots. The directory will be created if it does not exist.	out_dir = "./distribution_results"
distributions	character	No (default: c("genic", "ccre"))	Annotation layers to run. Supported values include "genic", "ccre", "chromhmm", and "repeat". Multiple analyses can be selected simultaneously.	distributions = c("genic", "repeat")
ref_genome	character	No (default: "hg38")	Reference genome used for annotation. Supported values are "hg38" and "mm10".	ref_genome = "mm10"
ref_source	character	No (default: "knownGene")	Gene annotation source used for genic annotation. "knownGene" uses UCSC knownGene annotations via TxDb packages, while "GENCODE" uses GENCODE reference annotations (Release 49 for hg38, vM35 for mm10).	ref_source = "GENCODE"
mode	character	No (default: "nearest")	Assignment mode for overlapping features. "nearest" assigns each query region to the closest annotation feature, while "weighted" assigns features proportionally based on overlap.	mode = "weighted"
plot	logical	No (default: TRUE)	Whether to generate stacked bar plots in addition to summary tables.	plot = FALSE

Example Usage

library(epigenomeR)

genomic_distribution(
  query = my_grl,
  out_dir = "./genomic_distribution_results",
  distributions = c("genic", "ccre", "chromhmm", "repeat"),
  ref_genome = "hg38",
  ref_source = "knownGene",
  mode = "nearest",
  plot = TRUE
)

1A. Genic Distribution Analysis

The genic_distribution() function annotates genomic regions with gene structural features, calculates overlap-based feature proportions, and generates a summary table with an optional visualization. The genic categories are defined as follows:

• Promoter: Regions defined as the 1,000 bp upstream of transcription start sites (TSS), representing promoter-proximal regulatory sequences associated with transcription initiation.
• 5’ UTR: Untranslated regions at the 5’ end of transcripts.

• Exon: Exonic regions corresponding to coding sequences only. Since untranslated regions are excluded, this category represents protein-coding portions of transcripts.
• Intron: Non-coding regions spliced out during transcript processing, often enriched for regulatory elements.

• 3’ UTR: Untranslated regions at the 3’ end of transcripts.

Parameters

Parameter	Type	Required	Description	Example
query	GRangesList or GRanges	Yes	Query regions to annotate with gene structures	query = my_peaks
out_dir	character	No (default: “./”)	Output directory for results. Created if doesn’t exist	out_dir = "./genic_results"
ref_genome	character	No (default: “hg38”)	Reference genome: “hg38” or “mm10”	ref_genome = "mm10"
ref_source	character	No (default: “knownGene”)	Gene annotation source used to define gene models. “knownGene” uses UCSC’s manually-curated gene models (via TxDb packages), “GENCODE” uses comprehensive reference annotations from GENCODE (Release 49 for hg38, vM35 for mm10)	ref_source = "GENCODE"
mode	character	No (default: “nearest”)	Assignment mode: “nearest” (closest feature) or “weighted” (proportional by overlap)	mode = "weighted"
plot	logical	No (default: TRUE)	Generate stacked barplot of genic feature distributions	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. cCRE annotation table - genic_distribution.tsv
   • Tab-delimited table of genic category percentages
   • Rows: samples/clusters from input
   • Columns: genic categories
   • Values: percentage of each category class per sample/cluster
2. cCRE distribution plot - genic_distribution.pdf (if plot = TRUE)
   • Stacked bar plot showing genic composition across samples or clusters
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters

1B. cCRE Distribution Analysis

The ccre_distribution() function annotates genomic regions with candidate cis-regulatory elements (cCREs) using RepeatMasker data, calculates overlap-based repeat class proportions, and outputs a summary table with an optional visualization. The cCRE categories are defined as follows:

• Promoter (Promoter-like signature):
  cCREs located within 200 bp of an annotated or experimentally supported TSS. They show high chromatin accessibility together with strong H3K4me3 enrichment, consistent with active transcription initiation sites.

• Enhancer (Enhancer-like signature):
  cCREs with high chromatin accessibility and strong H3K27ac signals. Elements within 2 kb of a TSS are classified as TSS-proximal enhancers, while those farther away are classified as TSS-distal enhancers. Regions within 200 bp of a TSS must have low H3K4me3 to avoid promoter assignment.

• CA-H3K4me3 (Chromatin accessibility with H3K4me3):
  cCREs showing high chromatin accessibility and H3K4me3 enrichment, low H3K27ac, and located outside the 200 bp TSS window. These regions resemble promoter-like chromatin states but are not directly associated with annotated TSSs.

• CA-CTCF (Chromatin accessibility with CTCF):
  cCREs characterized by high chromatin accessibility and CTCF binding, with low H3K4me3 and H3K27ac signals. They are typically associated with chromatin insulation and higher-order genome organization.

• CA-TF (Chromatin accessibility with transcription factor binding):
  cCREs with high chromatin accessibility that overlap transcription factor binding clusters, while showing low H3K4me3, H3K27ac, and CTCF signals. These regions likely represent TF-driven regulatory sites.

• CA (Chromatin accessibility only):
  cCREs marked by high chromatin accessibility but lacking H3K4me3, H3K27ac, and CTCF signals. They may represent open chromatin regions with potential or context-dependent regulatory activity.

• TF (Transcription factor binding):
  cCREs overlapping transcription factor binding clusters but showing low chromatin accessibility and low levels of H3K4me3, H3K27ac, and CTCF signals. These sites may reflect transient or condition-specific TF occupancy.

This figure summarizes how candidate cis-regulatory elements (cCREs) are classified based on chromatin accessibility, histone marks, CTCF binding, and transcription factor occupancy. Source: https://screen.wenglab.org/about

Parameters

Parameter	Type	Required	Description	Example
query	GRangesList or GRanges	Yes	Query regions to annotate with cCRE elements	query = my_peaks
out_dir	character	No (default: “./”)	Output directory for results. Created if doesn’t exist	out_dir = "./ccre_results"
ref_genome	character	No (default: “hg38”)	Reference genome: “hg38” or “mm10”	ref_genome = "mm10"
mode	character	No (default: “nearest”)	Assignment mode: “nearest” (closest category) or “weighted” (proportional by overlap)	mode = "weighted"
plot	logical	No (default: TRUE)	Generate stacked barplot of cCRE distributions	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. cCRE annotation table - ccre_distribution.tsv
   • Tab-delimited table of cCRE category percentages
   • Rows: samples/clusters from input
   • Columns: cCRE categories
   • Values: percentage of each category class per sample/cluster
2. cCRE distribution plot - ccre_distribution.pdf (if plot = TRUE)
   • Stacked bar plot showing cCRE composition across samples or clusters
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters

1C. ChromHMM Distribution Analysis

The chromhmm_distribution() function annotates genomic regions with chromatin states using ChromHMM data, calculates overlap-based chromatin state proportions, and produces a summary table with an optional visualization.

• Acet: Acetylation-associated active regulatory regions


• EnhWk: Weak enhancers


• EnhA: Active enhancers


• PromF: Promoter flanking regions


• TSS: Transcription start sites

• TxWk: Weak transcription


• TxEx: Transcription with exon signals


• Tx: Transcription

• OpenC: Open chromatin


• TxEnh: Transcribed enhancers

• ReprPCopenC: Polycomb-repressed regions with open chromatin

• BivProm: Bivalent promoters


• ZNF: Zinc finger gene clusters

• ReprPC: Polycomb-repressed chromatin


• HET: Constitutive heterochromatin

• GapArtf: Assembly gaps and artifacts


• Quies: Quiescent background

Parameters

Parameter	Type	Required	Description	Example
query	GRangesList or GRanges	Yes	Query regions to annotate with cCRE elements	query = my_peaks
out_dir	character	No (default: “./”)	Output directory for results. Created if doesn’t exist	out_dir = "./ccre_results"
ref_genome	character	No (default: “hg38”)	Reference genome: “hg38” or “mm10”	ref_genome = "mm10"
mode	character	No (default: “nearest”)	Assignment mode: “nearest” (closest category) or “weighted” (proportional by overlap)	mode = "weighted"
plot	logical	No (default: TRUE)	Generate stacked barplot of cCRE distributions	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. ChromHMM annotation table - chromhmm_distribution.tsv
   • Tab-delimited table of ChromHMM state percentages
   • Rows: samples/clusters from input
   • Columns: cCRE categories
   • Values: percentage of each category class per sample/cluster
2. ChromHMM distribution plot - chromhmm_distribution.pdf (if plot = TRUE)
   • Stacked bar plot showing repeat class composition across samples or clusters
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters

1D. Repeat Distribution Analysis

The repeat_distribution() function anotates genomic regions with chromatin states using ChromHMM data, computes overlap-based chromatin state percentages, and generates a summary table along with an optional visualization.

• SINE: Short interspersed nuclear elements


• LINE: Long interspersed nuclear elements


• LTR: Long terminal repeat retrotransposons


• Retroposon: Non-LTR retrotransposon-derived elements


• RC: Rolling-circle transposons

• DNA: DNA transposons

• Satellite: Satellite repeats


• Simple_repeat: Simple sequence repeats


• Low_complexity: Low-complexity sequences

• rRNA: Ribosomal RNA repeats


• tRNA: Transfer RNA repeats


• snRNA: Small nuclear RNA repeats


• scRNA: Small cytoplasmic RNA repeats


• srpRNA: Signal recognition particle RNA repeats


• RNA: Other RNA-related repeats

• Unknown: Unclassified repeat elements

Parameters

Parameter	Type	Required	Description	Example
query	GRangesList or GRanges	Yes	Query regions to annotate with cCRE elements	query = my_peaks
out_dir	character	No (default: “./”)	Output directory for results. Created if doesn’t exist	out_dir = "./ccre_results"
ref_genome	character	No (default: “hg38”)	Reference genome: “hg38” or “mm10”	ref_genome = "mm10"
mode	character	No (default: “nearest”)	Assignment mode: “nearest” (closest feature) or “weighted” (proportional by overlap)	mode = "weighted"
plot	logical	No (default: TRUE)	Generate stacked barplot of cCRE distributions	plot = FALSE

Output Files

The function generates the following output files in the specified out_dir:

1. Repeat annotation table - repeat_distribution.tsv
   • Tab-delimited table of repeat class percentages
   • Rows: samples/clusters from input GRangesList
   • Columns: repeat element categories ordered as:
     • Transposable elements: SINE, LINE, LTR, Retroposon, RC, DNA
     • Structural variants: Satellite, Simple_repeat, Low_complexity
     • RNA genes: rRNA, tRNA, snRNA, scRNA, srpRNA, RNA
     • Unknown
   • Values: percentage of each repeat class per sample
2. Repeat distribution plot - repeat_distribution.pdf (if plot = TRUE)
   • Stacked barplot visualization
   • X-axis: percentage (0-100%)
   • Y-axis: samples/clusters (reversed order)
   • Colors: Dark2 palette from RColorBrewer
   • Dimensions: 6 inches (width) × 5 inches (height)
   • Features: Minimal theme with horizontal legend at right

2. TFBS Enrichment Analysis

2A. Generate matched control regions

The get_matched_control() function generates background control regions by randomly selecting genes with similar length to the nearest gene of each target peak, then placing control regions at the same TSS-relative distance on the selected genes. This approach preserves the relationship between peaks and gene structure while avoiding biases from using the same genomic neighborhoods.

What this function does:

• Identifies the nearest gene for each target genomic region

• Finds candidate genes with similar length (within tolerance threshold)

• Randomly selects control genes from candidates, excluding the original gene

• Places control regions at identical TSS-relative distances on control genes

• Validates control regions are within chromosome boundaries

• Generates multiple control regions per target (configurable replicates)

• Automatically relaxes length tolerance if insufficient candidates found

• Returns GRanges object with all generated control regions

Parameters

Parameter	Type	Required	Description	Example
target_gr	GRanges	Yes	GRanges object containing target peak regions for which controls will be generated	target_gr = my_peaks
ref_genome	character	No (default: “hg38”)	Reference genome version: “hg38” (Human GRCh38) or “mm10” (Mouse GRCm38)	ref_genome = "hg38"
style	character	No (default: “UCSC”)	Chromosome naming style (e.g., “UCSC” uses “chr1”, “Ensembl” uses “1”)	style = "UCSC"
n_rep	integer	No (default: 1)	Number of control regions to generate per target peak	n_rep = 3
regions	integer	No (default: 800)	Width of control regions in base pairs (centered on calculated position)	regions = 500
seed	integer	No (default: 42)	Random seed for reproducible control region selection	seed = 12345
length_tolerance	numeric	No (default: 0.2)	Initial tolerance for gene length matching (0.2 = ±20%). Automatically relaxed up to ±100% if insufficient candidates	length_tolerance = 0.3

• Chromosome handling:
  • Only uses standard chromosomes (excludes mitochondrial DNA)
  • For hg38: chr1-chr22, chrX, chrY
  • For mm10: chr1-chr19, chrX, chrY
  • Control regions must fit within chromosome boundaries
  • Invalid positions (out of bounds) are skipped
• TSS-relative positioning:
  • Preserves signed distance from target peak to nearest gene TSS
  • Negative distance: peak is upstream of TSS
  • Positive distance: peak is downstream of TSS
  • Accounts for gene strand orientation (+ or -)
  • Control center = Control gene TSS + original TSS distance
• Gene length matching:
  • Initial tolerance: ±20% of original gene length (default)
  • If insufficient candidates (< n_rep * 2), tolerance increases by 10% increments
  • Maximum automatic tolerance: ±100% (doubled or halved gene length)
  • If still insufficient, uses all genes except the original
  • Ensures control genes have comparable structural features

Output

The function returns a GRanges object containing all successfully generated control regions.

• Object type: GRanges (GenomicRanges package)

• Number of regions: Up to n_rep × length(target_gr) regions

  • Actual count may be lower if some controls fail boundary validation

  • Each target peak ideally generates n_rep control regions

• Region characteristics:

  • Width: All regions have uniform width specified by regions parameter
  • Positioning: Centered on calculated TSS-relative positions
  • Chromosome style: Follows the specified style parameter (e.g., “chr1” for UCSC)
  • Genome info: Includes seqlengths from reference genome

Usage Examples

library(epigenomeR)
library(GenomicRanges)

# Load target peaks
target_peaks <- rtracklayer::import("CTCF_peaks.bed")

# Basic usage - 1 control per target
control_regions <- get_matched_control(
  target_gr = target_peaks,
  ref_genome = "hg38"
)

# Generate multiple controls per target
control_regions <- get_matched_control(
  target_gr = target_peaks,
  ref_genome = "hg38",
  n_rep = 5,
  regions = 500
)

# Mouse genome with relaxed length tolerance
control_regions <- get_matched_control(
  target_gr = target_peaks,
  ref_genome = "mm10",
  n_rep = 3,
  length_tolerance = 0.3,
  seed = 123
)

2B. TFBS Enrichment Analysis

The calculate_TFBS_enrichment() function performs motif enrichment analysis comparing a set of target genomic regions against control regions using Fisher’s exact test to identify significantly enriched transcription factor binding motifs.

What this function does:

• Compares target genomic regions (GRanges) against background/control regions (GRanges)

• Works directly with GRanges objects without file I/O for region inputs

• Overlaps regions with a comprehensive motif library (stored as RDS files)

• Optionally filters motif sites using functional region annotations (GRanges)

• Counts motif occurrences in target vs control regions using countOverlaps()

• Performs Fisher’s exact test for each motif with pseudocount correction

• Calculates odds ratios with standard errors

• Adjusts p-values for multiple testing using Benjamini-Hochberg FDR

• Identifies transcription factors with significantly enriched binding sites

• Provides quantitative enrichment statistics for downstream interpretation

Parameters

Parameter	Type	Required	Description	Example
target_region	GRanges	Yes	GRanges object containing genomic regions of interest	target_region = my_peaks
control_region	GRanges	Yes	GRanges object containing background/control regions for comparison	control_region = background_peaks
functional_region	GRanges or NULL	No (default: NULL)	Optional GRanges object with functional regions for filtering motif sites. Only motifs overlapping these regions are considered	functional_region = open_chromatin
out_path	character	No (default: “./TFBS_enrichment.tsv”)	File path to save enrichment results table (TSV format)	out_path = "./results/motif_enrichment.tsv"
regions	integer or NULL	No (default: NULL)	Size in base pairs to resize all regions around their center point. If NULL, regions are used as-is	regions = 500
ref_genome	character	No (default: “hg38”)	Reference genome version: “hg38” or “mm10”	ref_genome = "hg38"
style	character or NULL	No (default: NULL)	Chromosome naming style (e.g., “UCSC”, “Ensembl”). If NULL, auto-detects from target_region	style = "UCSC"

• Input format:
  • Function expects GRanges objects directly (not file paths)
  • All chromosome naming styles are harmonized automatically
  • If style is NULL, uses the style from target_region
• Region resizing:
  • Optional: Controlled by the regions parameter
  • If regions = NULL (default): Regions are used with their original widths
  • If regions is specified (e.g., 500): Both target and control regions are resized to the specified width, centered on each region’s midpoint.
• Statistical method:
  • Adds pseudocount (+1) to all counts to avoid division by zero
  • Uses one-sided Fisher’s exact test (alternative = “greater”)
  • Tests enrichment hypothesis (motif more frequent in target)

Output Files

The function generates the following output file at the specified output_path:

1. Motif enrichment table - <output_path> (TSV format)
   • Tab-separated table with motif enrichment statistics
   • Rows: Individual transcription factor motifs from JASPAR database
   • Columns:
     • Row names: Motif identifiers (e.g., “MA0139.1” for CTCF)
     • odds_ratio: Odds ratio from Fisher’s exact test (enrichment magnitude)
       • Value > 1: Motif enriched in target regions
       • Value < 1: Motif depleted in target regions
       • Higher values indicate stronger enrichment
     • pvalue: Raw p-value from Fisher’s exact test (one-sided, greater)
       • Tests if motif is significantly more frequent in target vs control
       • Lower values indicate stronger statistical significance
     • odds_ratio_se: Standard error of log odds ratio
       • Measure of uncertainty in odds ratio estimate
       • Useful for calculating confidence intervals
     • FDR: False Discovery Rate (Benjamini-Hochberg adjusted p-value)
       • Corrects for multiple testing across all motifs
       • Typical threshold: FDR < 0.05 or 0.01
     • target_hit: Number of target regions overlapping motif sites
       • Count of target regions containing the motif
     • control_hit: Number of control regions overlapping motif sites
       • Count of control regions containing the motif
   • Sorted by row names (motif IDs)
   • Can be sorted by FDR or odds_ratio for prioritization

   feature	odds_ratio	pvalue	odds_ratio_se	FDR	target_hit	control_hit
   (CRISPR targeting AFF4)AFF4	16.14696	2.348799e-123	0.1066921	1.327293e-122	194	768
   (CRISPR targeting ARID3B)ARID3B	35.14312	1.320588e-76	0.1620585	3.858694e-76	78	95
   (CRISPR targeting ARID4B)ARID4B	34.39295	7.107417e-223	0.1229221	4.257343e-221	308	1241
   (CRISPR targeting ATF1)ATF1	18.37715	3.968721e-74	0.1327106	1.132030e-73	98	242
   (CRISPR targeting ATF2)ATF2	18.67509	6.632538e-33	0.1978719	1.119124e-32	40	83
   (CRISPR targeting ATF3)ATF3	23.37675	9.848921e-136	0.1117167	7.023218e-135	174	444

Example Usage

library(epigenomeR)
target_region <- rtracklayer::import("target_peaks.bed")
control_region <- rtracklayer::import("control_peaks.bed")

# Basic enrichment analysis (using original region widths)
calculate_TFBS_enrichment(
  target_region = target_region,
  control_region = control_region,
  out_path = "./TFBS_enrichment.tsv",
  ref_genome = "hg38"
)

# With uniform region resizing (200bp centered windows)
calculate_TFBS_enrichment(
  target_region = target_region,
  control_region = control_region,
  regions = 200,
  out_path = "./TFBS_enrichment_200bp.tsv",
  ref_genome = "hg38"
)

# With functional region filtering (e.g., open chromatin)
functional_region <- rtracklayer::import("ATAC_peaks.bed")
calculate_TFBS_enrichment(
  target_region = target_region,
  control_region = control_region,
  regions = 500,
  functional_region = functional_region,
  out_path = "./TFBS_enrichment_filtered.tsv",
  ref_genome = "hg38"
)

---

2C. TFBS Enrichment Heatmap Visualization

The TFBS_enrichment_heatmap() function generates heatmaps to visualize transcription factor binding site (TFBS) enrichment patterns across multiple genomic clusters or experimental conditions, using results from TFBS_enrichment() analysis.

What this function does:

• Reads multiple TFBS enrichment result files from TFBS_enrichment() output

• Combines odds ratios, FDR values, and target hits across all samples/clusters

• Filters TFBS based on significance (FDR ≤ 0.05), effect size (odds ratio ≥ 2), and coverage criteria

• Allows filtering for specific transcription factors of interest via pattern matching

• Applies log2 transformation to odds ratios for symmetric visualization

• Generates a comprehensive heatmap showing all TFBS passing filtering criteria

• (Optional) Creates a focused heatmap displaying the union of top N most enriched TFBS per sample

• (Optional) Supports optional hierarchical clustering of samples for pattern discovery

• Produces publication-ready visualizations with consistent formatting and scalable dimensions

• Exports log2-transformed odds ratio and FDR matrices for downstream analysis

Parameters

Parameter	Type	Required	Description	Example
tsv_path	character vector	Yes	Vector of file paths to TFBS enrichment result TSV files from TFBS_enrichment() analysis	tsv_path = c("cluster1.tsv", "cluster2.tsv")
label	character vector	Yes	Vector of sample/cluster labels corresponding to tsv_path. Must have same length as tsv_path	label = c("Cluster1", "Cluster2", "Cluster3")
out_dir	character	Yes	Output directory to save heatmaps and data matrices	out_dir = "./heatmaps"
top_n	integer	No (default: 20)	Number of top enriched TFBS per sample to display in second heatmap. If NULL, only the full heatmap is generated	top_n = 50
selected_tfs	character vector	No (default: NULL)	Vector of transcription factor names or substrings to filter rows (TFBS). Matching is case-insensitive. If NULL, all TFBS retained	selected_tfs = c("CTCF", "AP1", "STAT")
apply_cluster	logical	No (default: FALSE)	Whether to apply hierarchical clustering to columns and reorder them. If TRUE, columns are clustered and reversed for visualization	apply_cluster = TRUE

• Input file requirements:
  • Files must be TSV format with tab-separated values
  • Must be output from TFBS_enrichment() function
  • Required columns: odds_ratio, FDR, target_hit
  • Row names: TFBS/motif IDs (e.g., JASPAR identifiers)
  • All files should have consistent TFBS IDs (mismatches will trigger warnings)
• Filtering logic:
  • Stringent default criteria (OR ≥ 2, FDR ≤ 0.05)
  • Requires meeting ALL criteria in at least ONE sample
  • Target hit threshold: 10th percentile prevents low-coverage artifacts
  • Only non-NA rows/columns retained
  • Filters applied sequentially: NA removal → biological criteria → selected_tfs
• Column clustering:
  • Without clustering (apply_cluster = FALSE): Columns ordered by sorted labels
  • With clustering (apply_cluster = TRUE):
    • Hierarchical clustering applied (Euclidean distance, complete linkage)
    • Column order extracted and reversed for better visualization
    • Final heatmap drawn with fixed order (no dendrogram shown)
  • Clustering applied identically to both full and top N heatmaps if both generated

Output Files

The function generates the following output files in the specified out_dir:

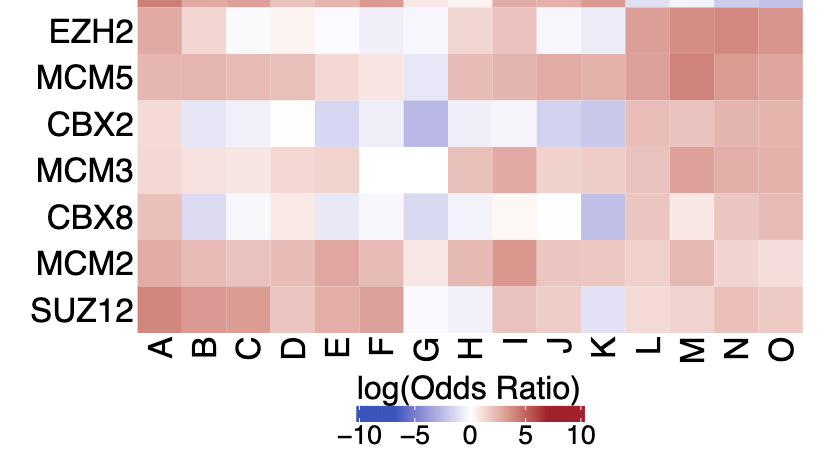

1. Full matrix heatmap - TFBS_heatmap_all.pdf
   • Heatmap showing all motifs passing filtering criteria
   • Rows: Transcription factor motifs (TF IDs)
   • Columns: Clusters or experimental conditions
   • Color scale: Blue (low enrichment) → White (neutral) → Red (high enrichment)
   • Symmetric color scale centered at zero
   • Log2-transformed odds ratios for visualization
   • No row/column clustering by default unless “cluster” transformation specified
   •

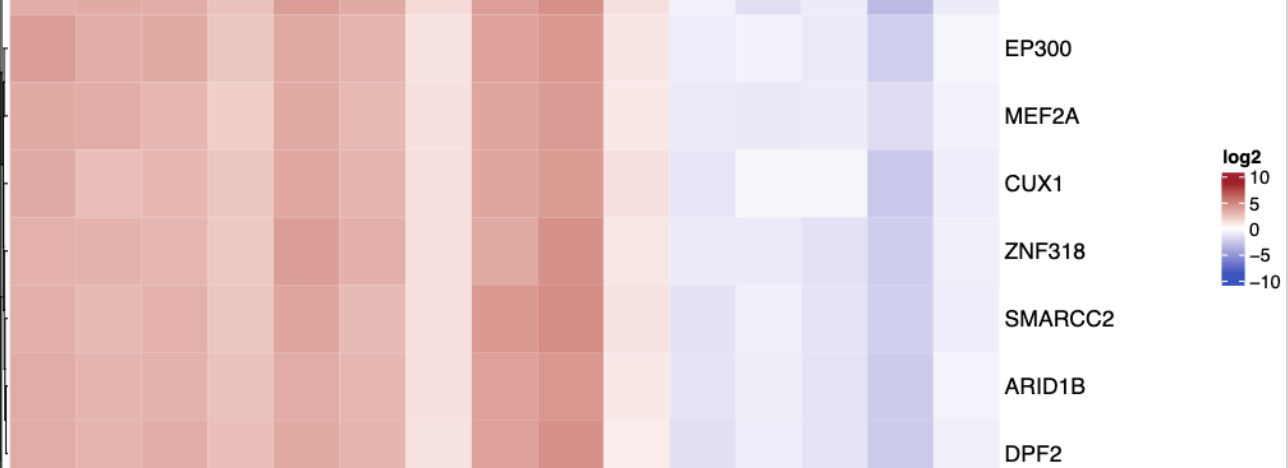

2. Top N motifs heatmap - TFBS_heatmap_top<n>.pdf (if top_n provided)
   • Heatmap showing union of top N most enriched TFBS per sample
   • Selects top N TFBS from each sample independently, then takes union
   • Optional column clustering if apply_cluster = TRUE
   •

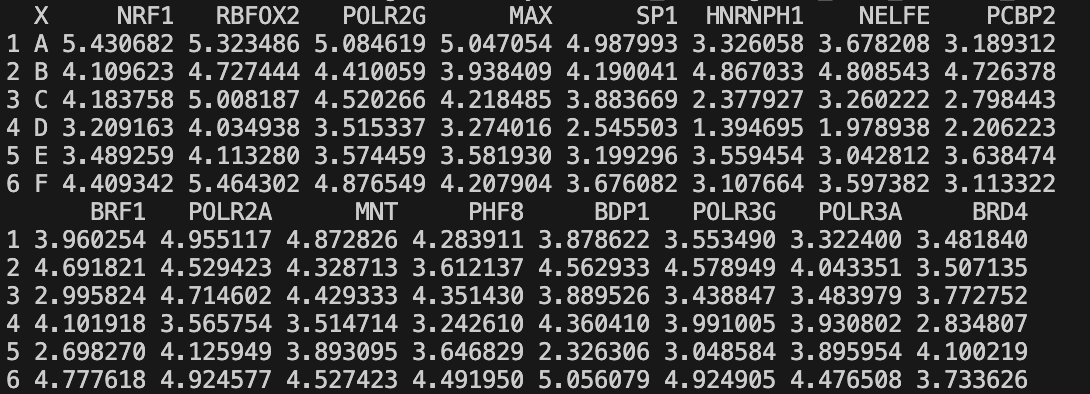

3. Log2 odds ratio matrix - TFBS_odds_ratio_log2.csv
   • CSV file containing log2-transformed odds ratios
   • Rows: TFBS IDs
   • Columns: Cluster/condition names
   • Values: log2(odds_ratio) from enrichment analysis
   • Filtered to significant TFBS only (odds_ratio ≥ 2, FDR ≤ 0.05, target_hit ≥ 10th percentile)
   • Reflects the exact data shown in heatmaps
   •

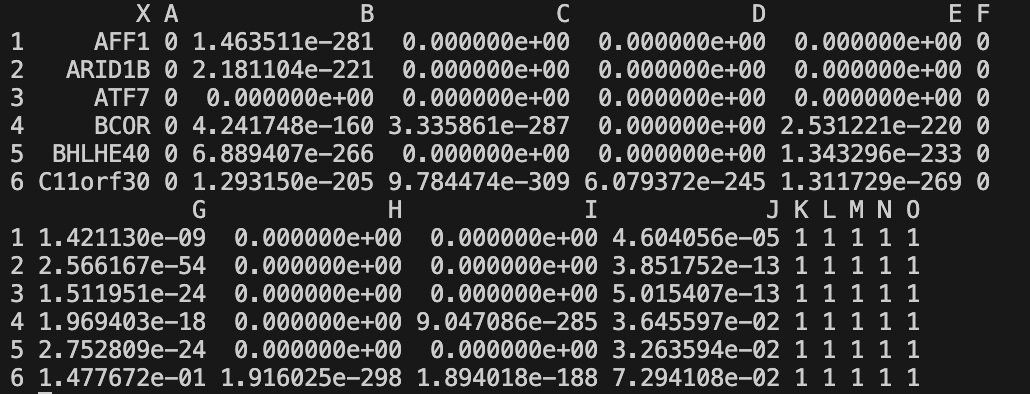

4. FDR matrix - TFBS_FDR.csv
   • CSV file containing FDR-adjusted p-values
   • Rows: TFBS IDs matching odds_ratio_log2.csv
   • Columns: Sample/cluster names (same order as odds_ratio_log2.csv)
   • Values: FDR (False Discovery Rate) from enrichment analysis
   • Useful for identifying significant enrichments
   •

Example Usage

library(epigenomeR)

# Example 1: Basic usage - generate heatmap for all filtered TFBS
TFBS_enrichment_heatmap(
  tsv_path = c(
    "output/TFBS_enrichment_Cluster1.tsv",
    "output/TFBS_enrichment_Cluster2.tsv",
    "output/TFBS_enrichment_Cluster3.tsv"
  ),
  label = c("Cluster1", "Cluster2", "Cluster3"),
  out_dir = "heatmaps/all_tfbs"
)

# Example 2: With top N selection - focus on most enriched TFBS
TFBS_enrichment_heatmap(
  tsv_path = c(
    "output/TFBS_enrichment_Cluster1.tsv",
    "output/TFBS_enrichment_Cluster2.tsv",
    "output/TFBS_enrichment_Cluster3.tsv"
  ),
  label = c("Cluster1", "Cluster2", "Cluster3"),
  out_dir = "heatmaps/top10",
  top_n = 10
)

# Example 3: Filter for specific transcription factors
TFBS_enrichment_heatmap(
  tsv_path = c(
    "output/TFBS_enrichment_TypeA.tsv",
    "output/TFBS_enrichment_TypeB.tsv",
    "output/TFBS_enrichment_TypeC.tsv"
  ),
  label = c("TypeA", "TypeB", "TypeC"),
  out_dir = "heatmaps/selected_tfs",
  top_n = 15,
  selected_tfs = c("CTCF", "AP1", "STAT", "NRF", "FOXO")
)

---
